Excavator 750



4-axle clockwork Excavator. Chassis red, cabin and roof in green / grey-green, boom and clam red. The excavator is "propelled" by the well-known clockwork as used in the locos. Clockwork key on the right side - foldable as seen on the o17 engine shed - not removable. The functions are controlled by the knob on top of the roof - as known from the locos - including "quick release" on 0 position. There is another lever at the rear of the cabin - this one will open and close the clam. The boom is sectioned and foldable - resulting in a larger boom than known from the other excavators. The boom is kept in position by two small chains fixed to the cabin roof - no further function. For me this is the ultimate BILLER TOY - that is why I have "some" of them :-) Presented in March 1954 at the Nuremberg Toy Fair. Available until at least 1962.

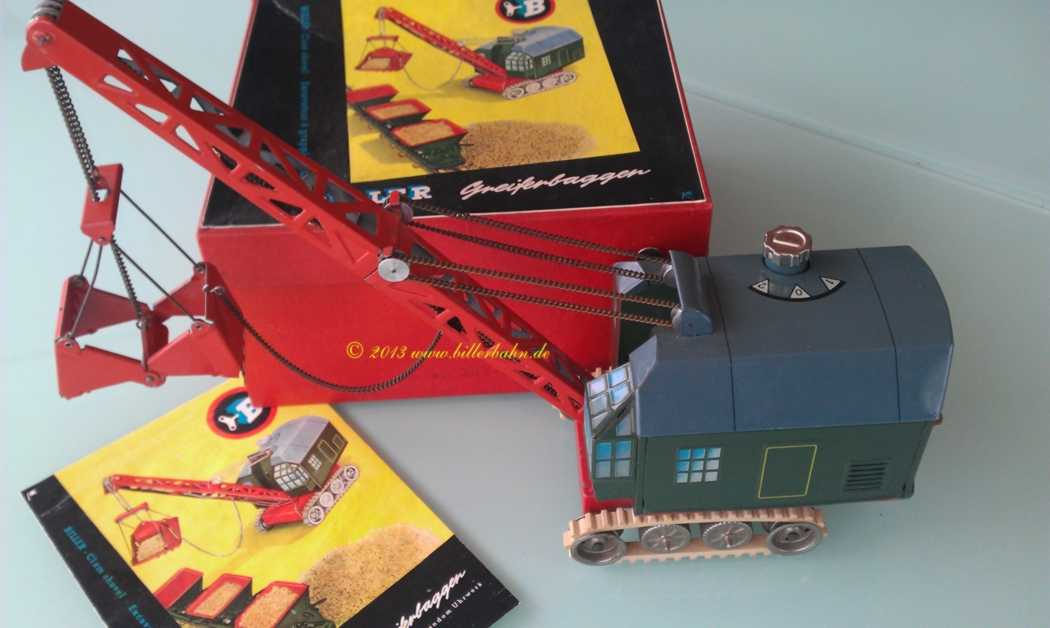

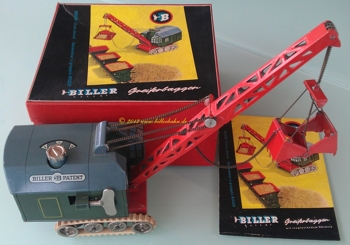

total view onto the 1st version

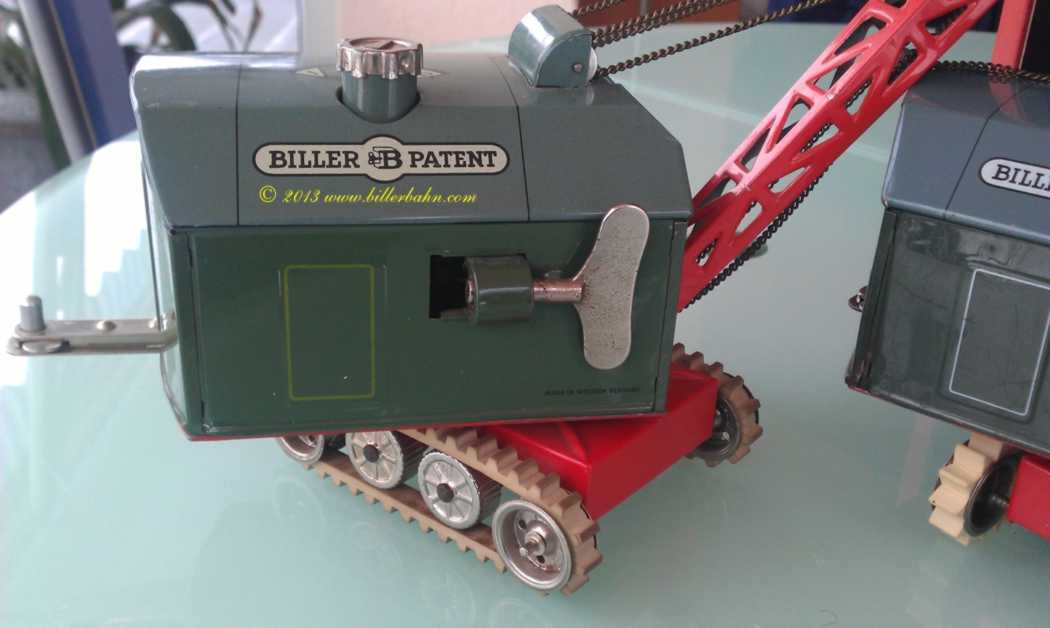

total view onto the left side

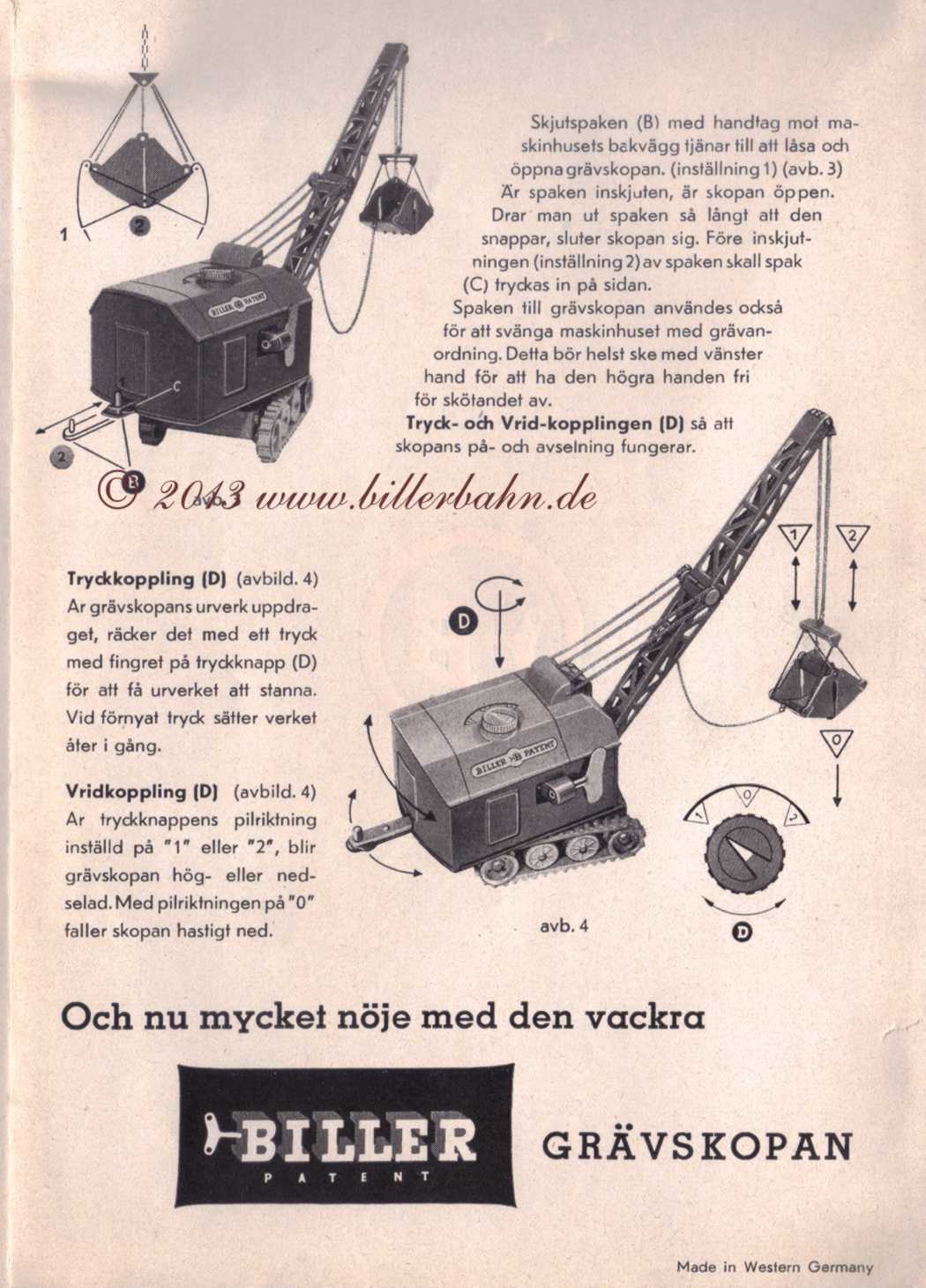

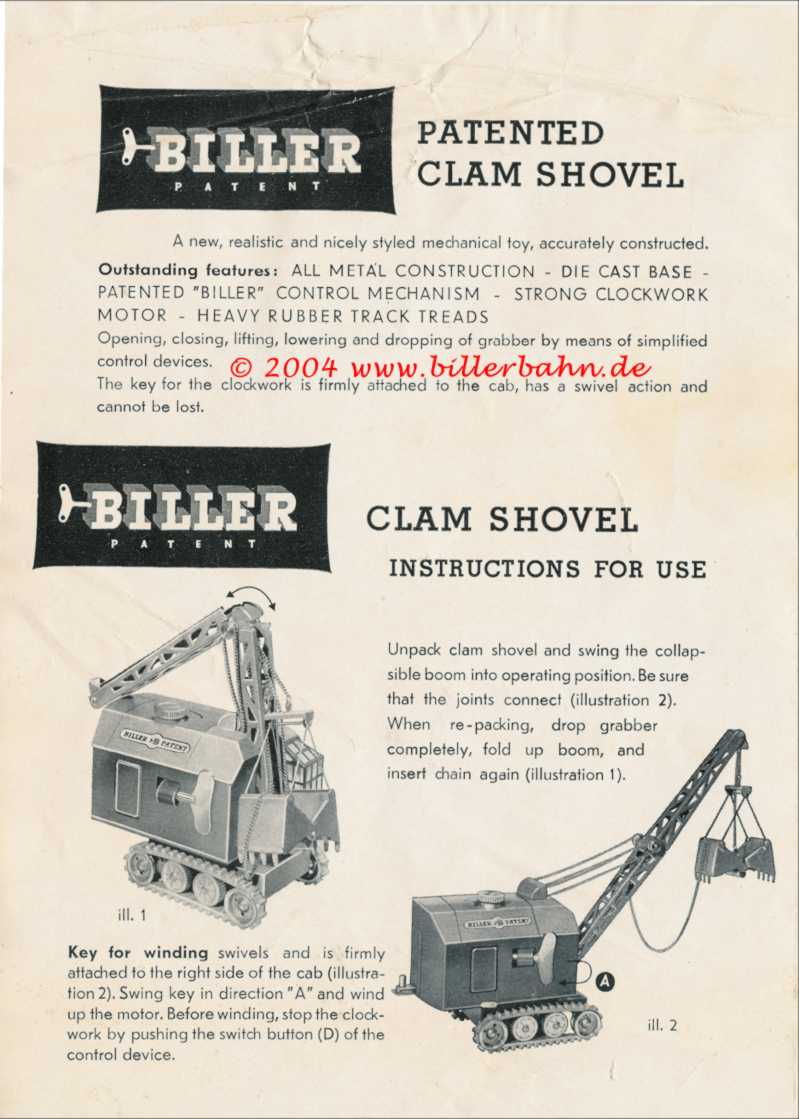

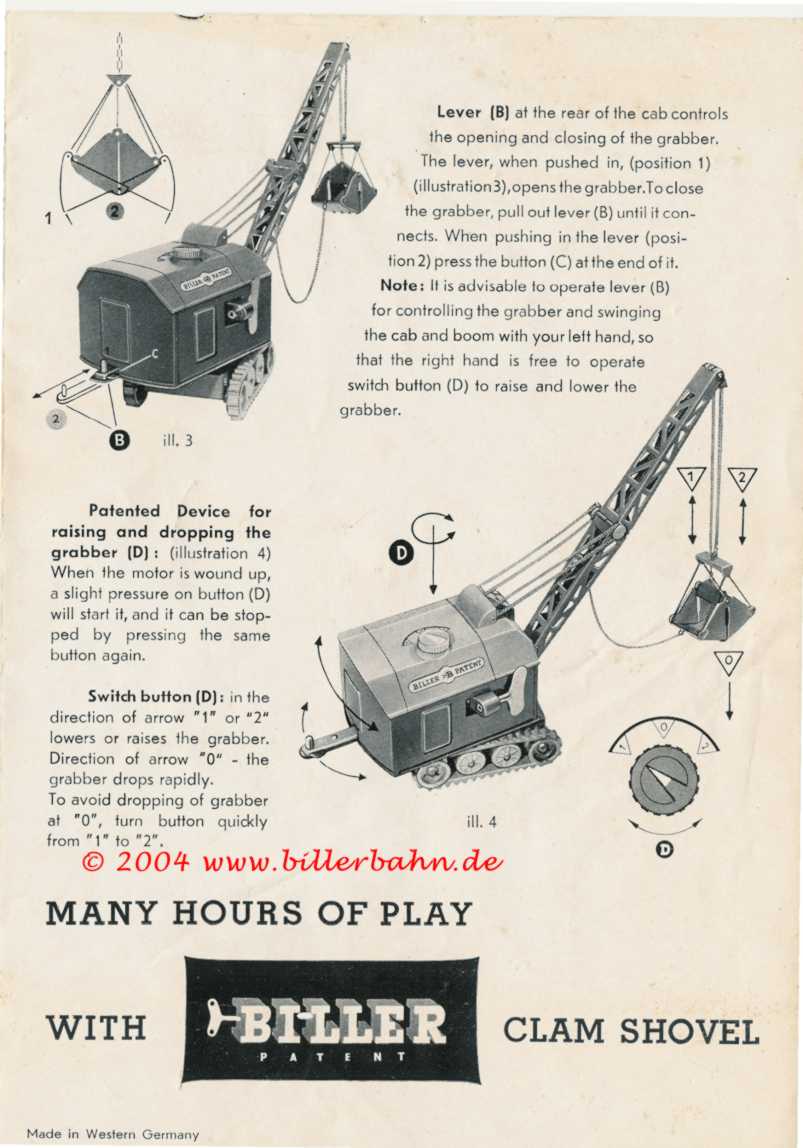

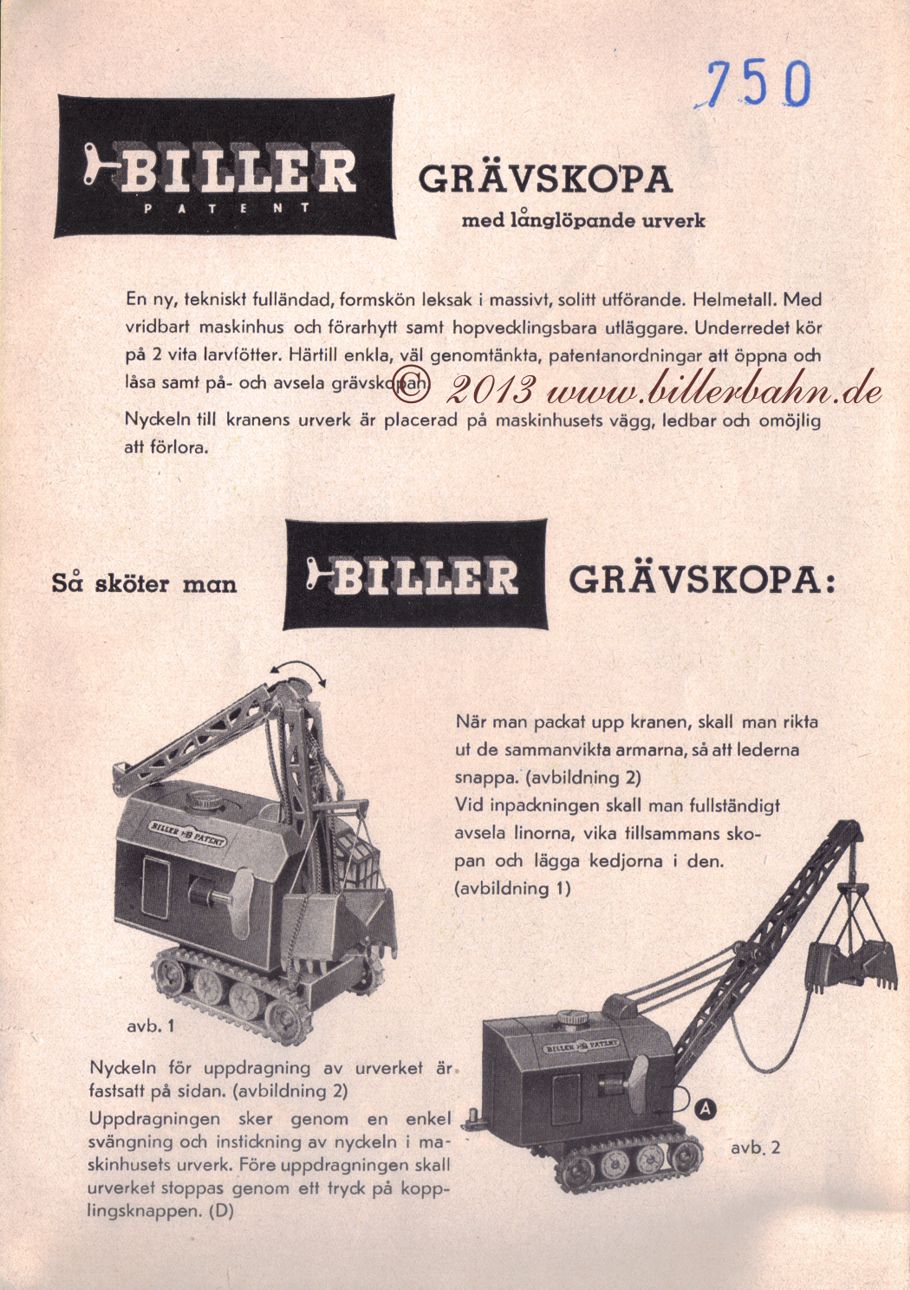

"how to handle..." the excavator - in English "how to handle..." the excavator in Swedish

Coverbild der Anleitung

Coverbild der Anleitung



"how to handle..." the excavator - in German Retailers-Journal "Das Spielzeug" April 1954

Coverbild der Anleitung

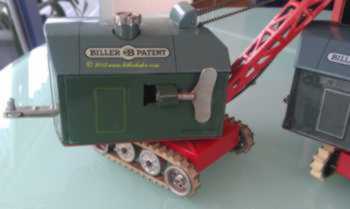

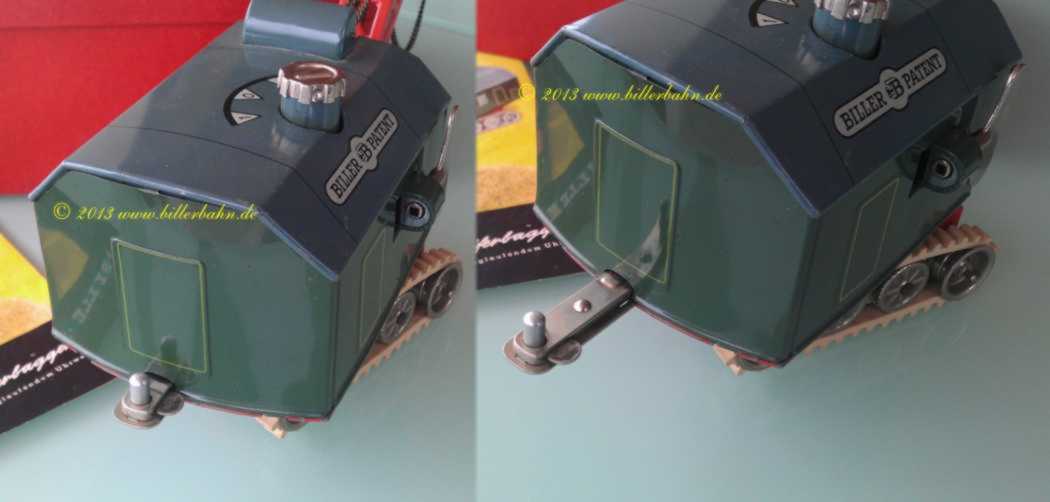

first version without Biller inscription on the key - the control knob as known from the locos - yellow lines

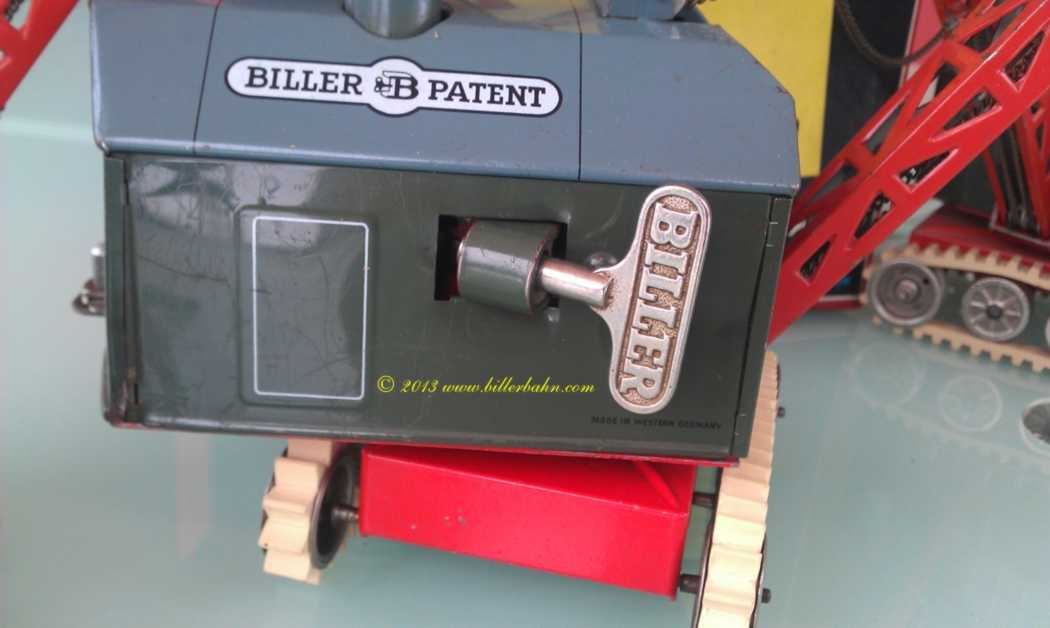

and the "last" version key - mainly white lining. But also known with yellow lines.

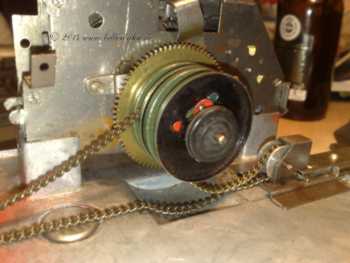

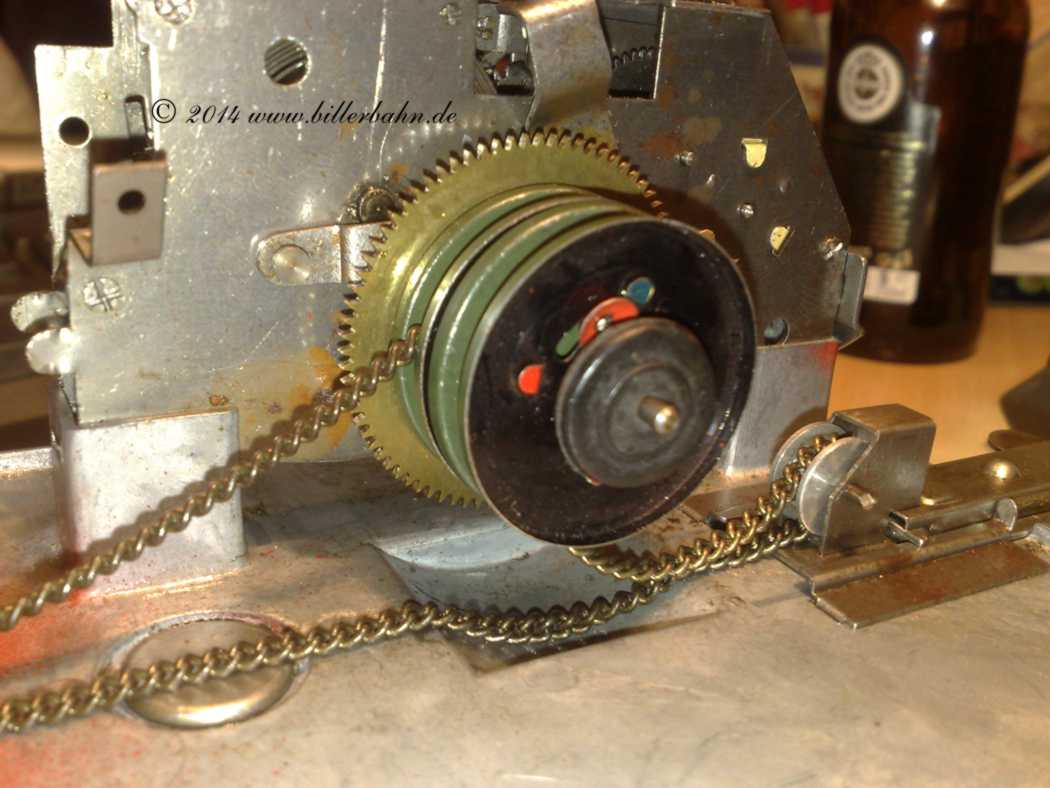

1. version clockwork with small 32 mm chain drums. The drums are retained on the axle by a rubber disc.

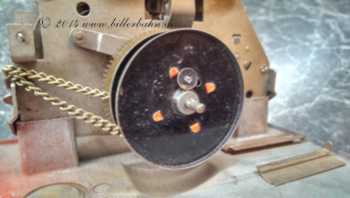

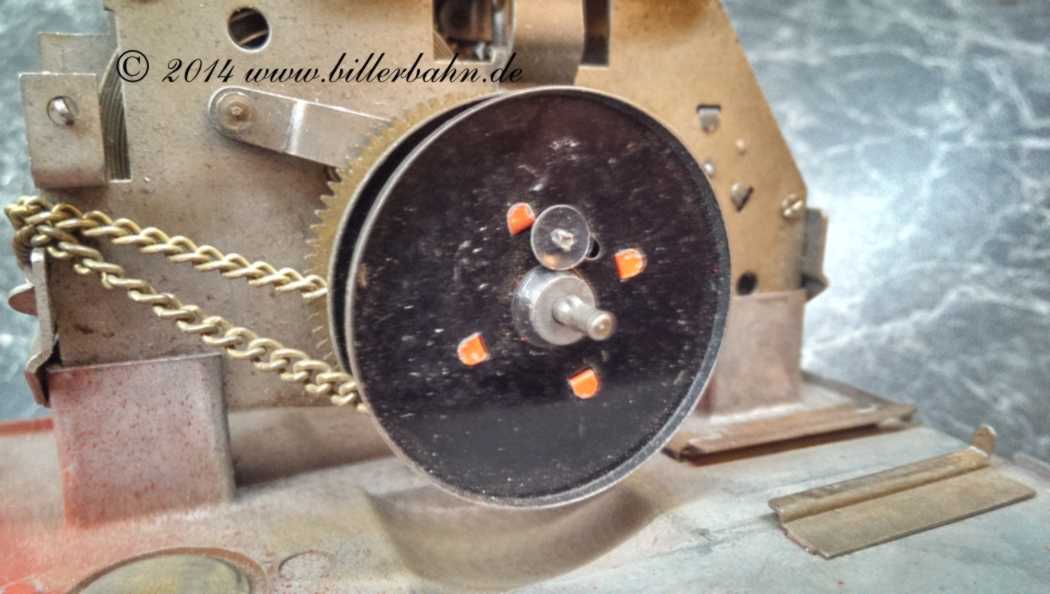

2. version clockwork with large 40 mm chain drums. Drums retained on the axle by "squeezed noses".

1. Uhrwerk mit kleinen Kettenrollen

mit Quetschnasen gesichert

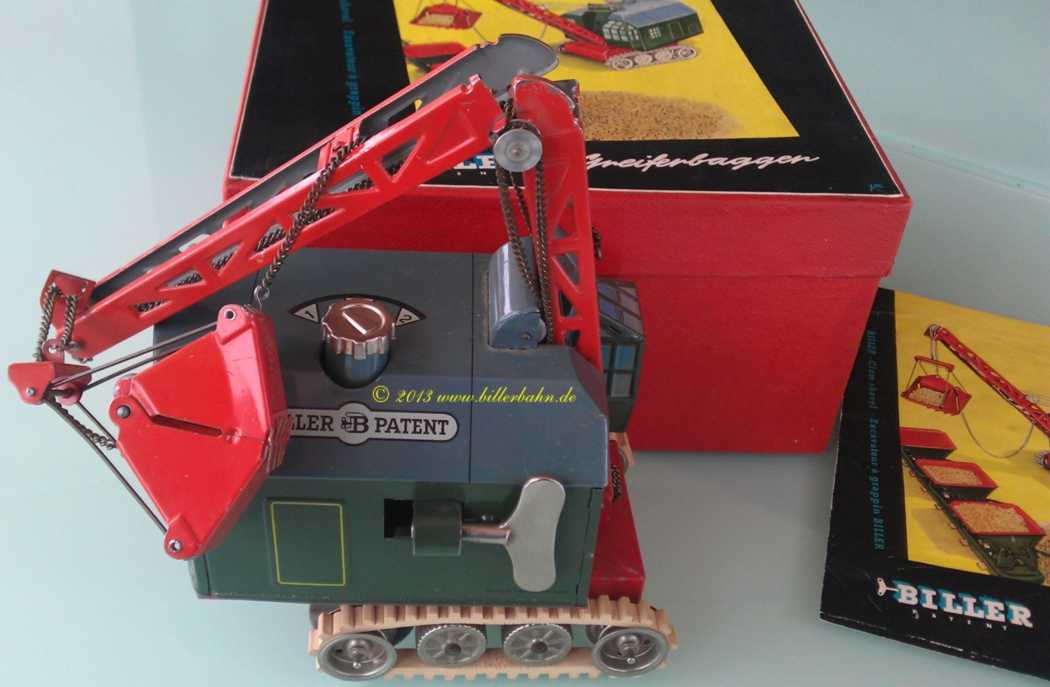

ready for "street-transport"

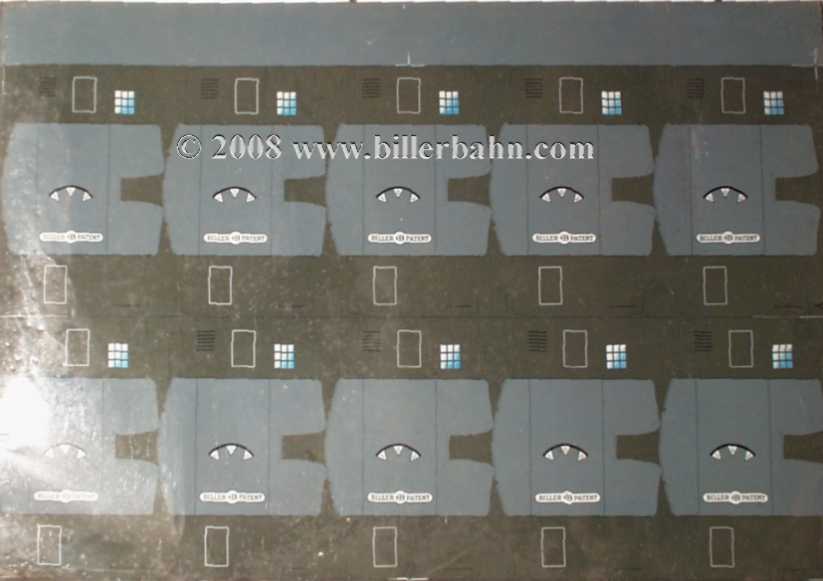

un-punched tin - allowing 10 excavators to "run off" the "assembly line"

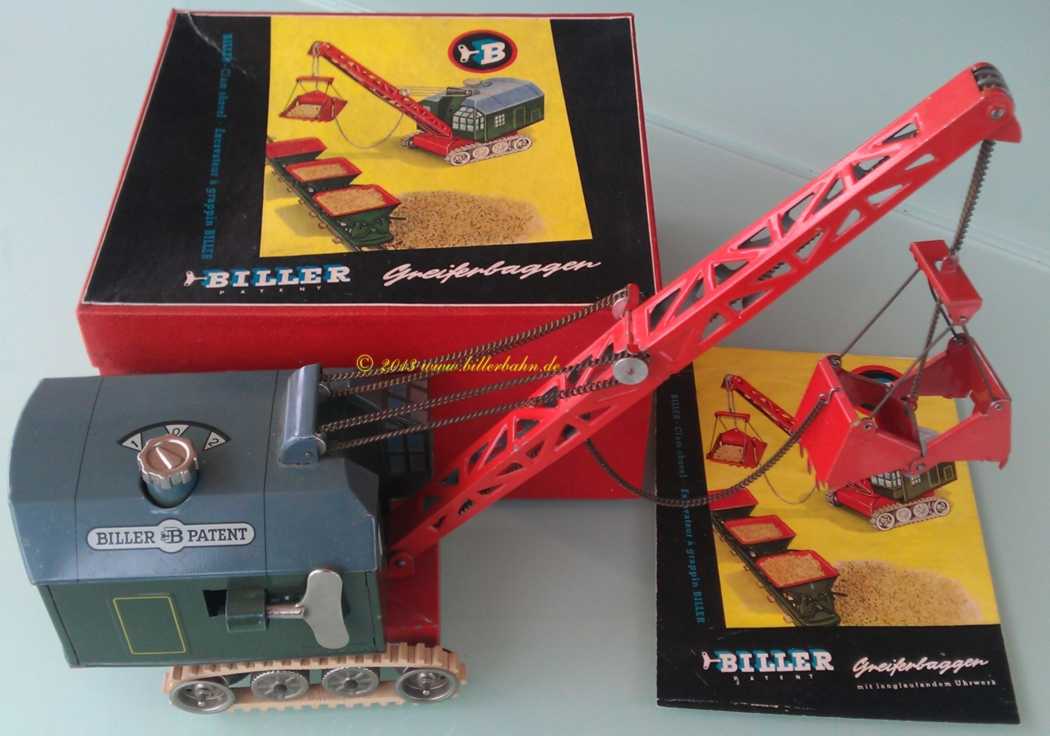

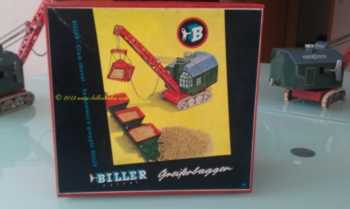

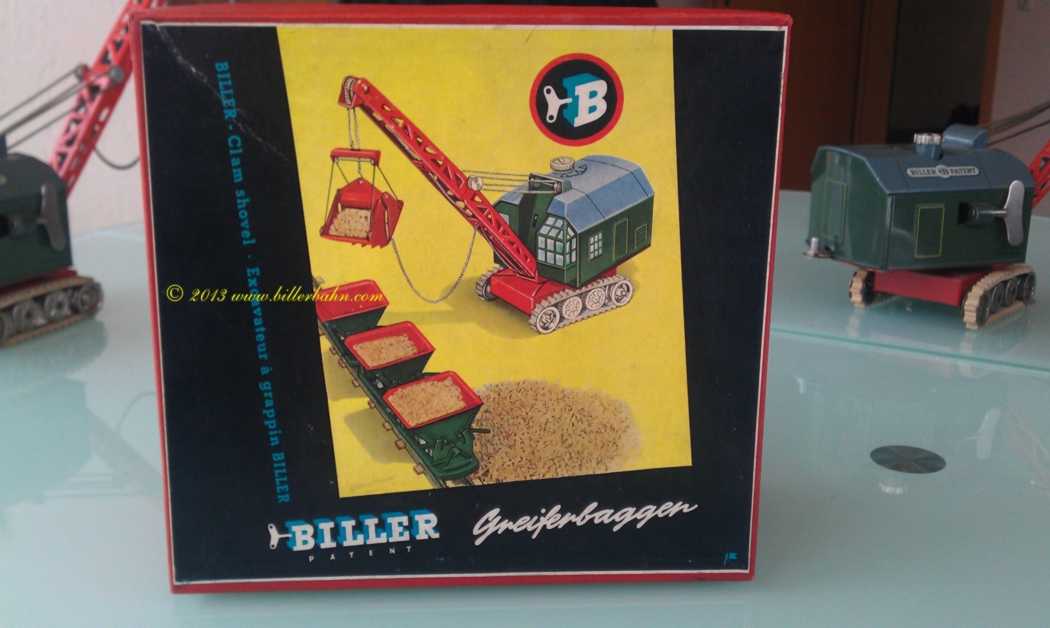

2 picture of the original box: nicely coloured lid picture, the bottom side shows the order No. and the price - here is was 18,50 Deutsche Mark. Box measures 22 x 23,3 cm

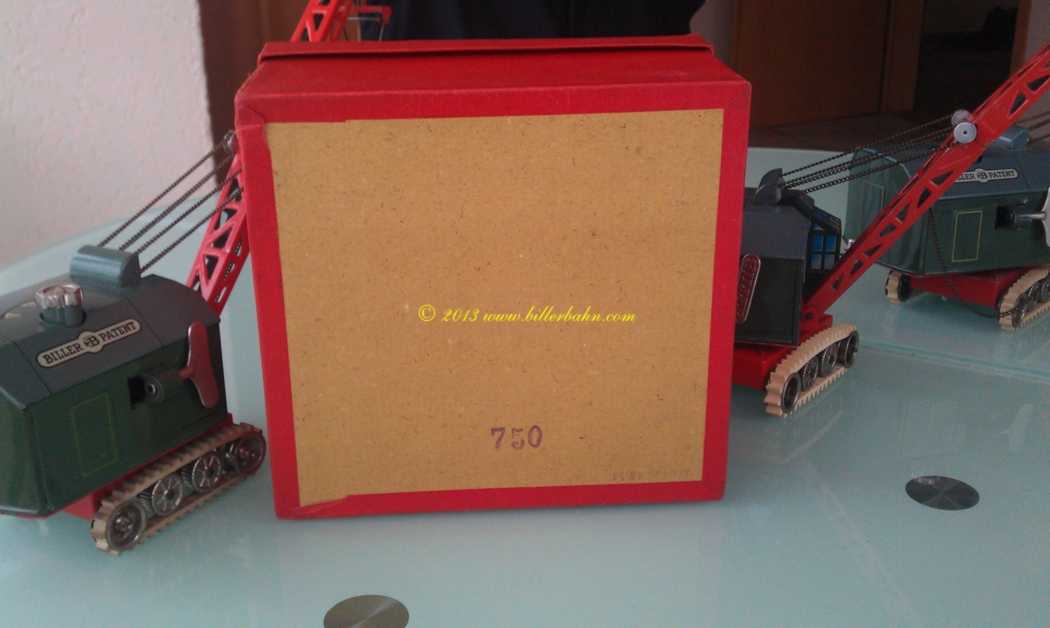

Underneath the box: order No. and price - and another (storage-???) No. on one of the sides.

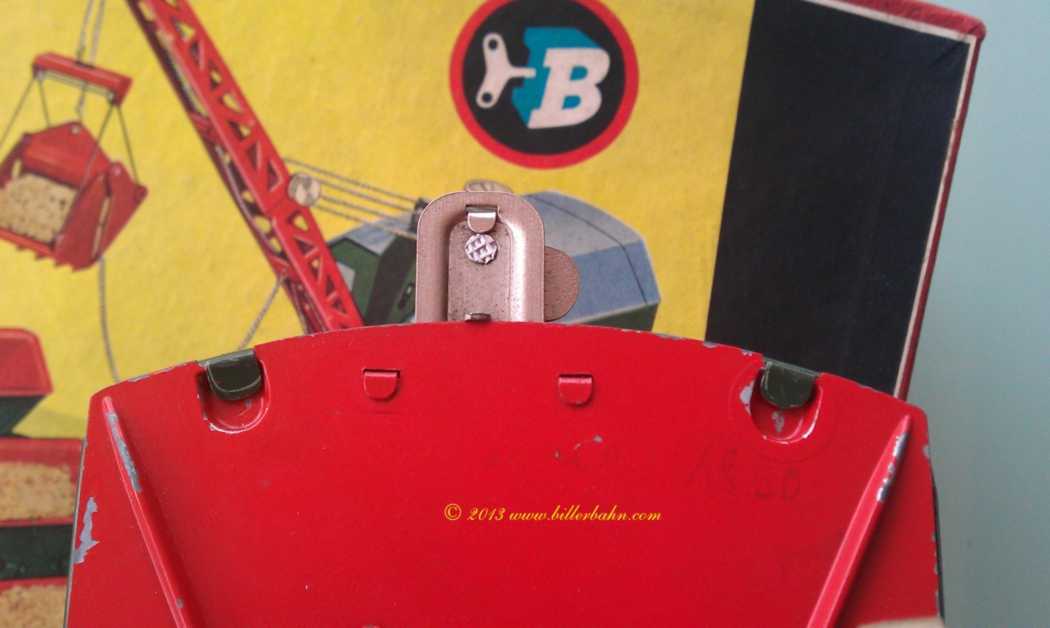

And once more the price underneath the cabin.



the rod exiting the rear of the cabin - to open and close the bucket / clam

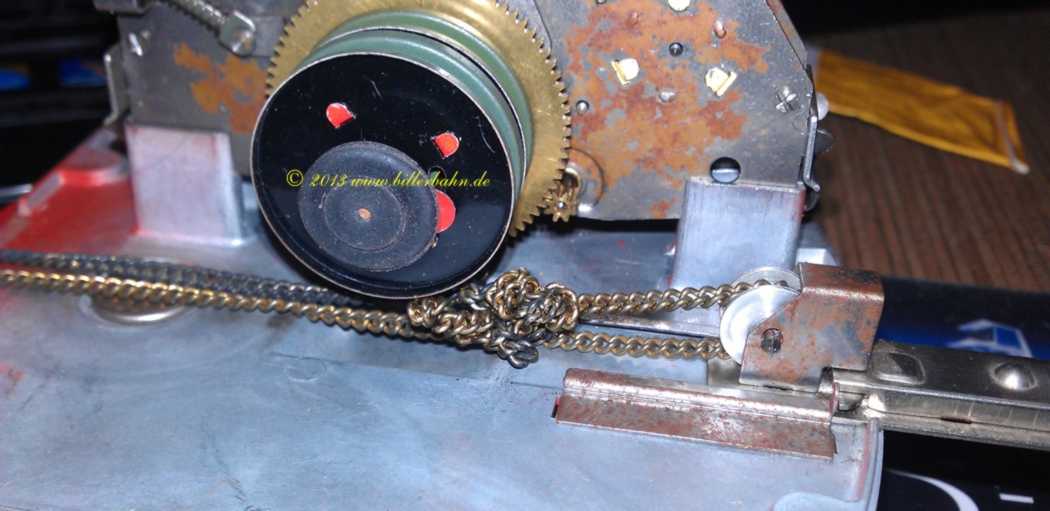

If it looks like this the complete mechanism has to be / better should be dismantled. This excavator again works perfect.

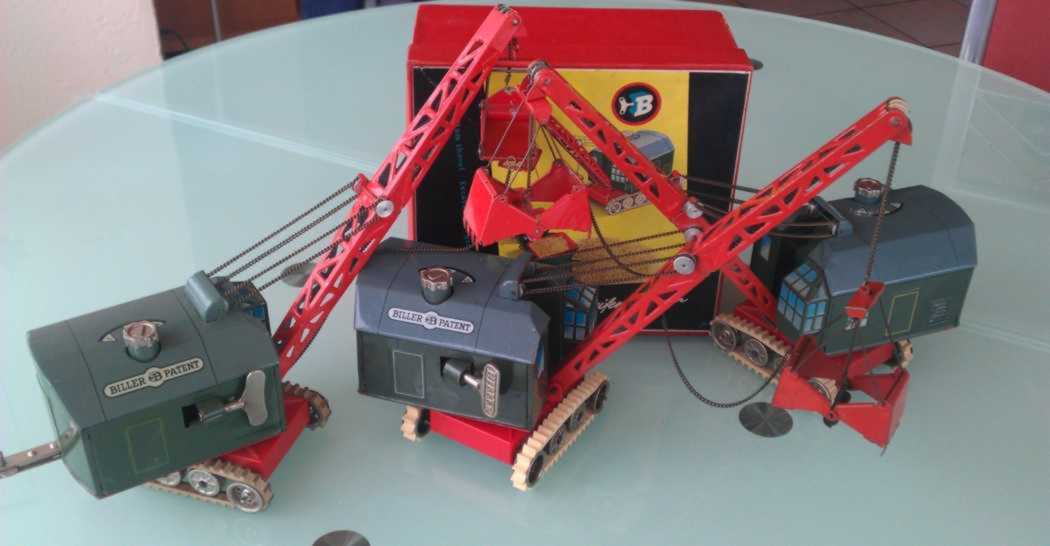

Triple formation

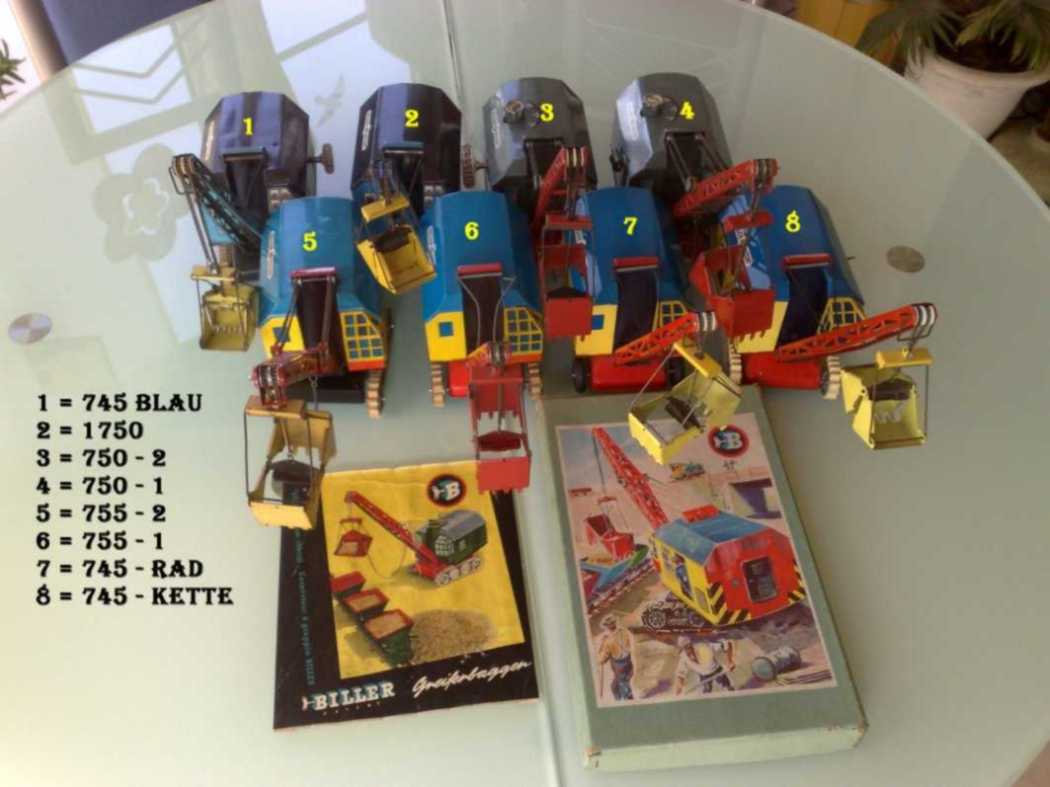

and some more
